Secret Manager¶

CIRRUS hosts a secrets management service called OpenBao, available to UCAR employees via a secure Web UI. It allows you to store sensitive data such as API tokens, credentials, and configuration variables in a central, encrypted location.

Adding a Secret to NCAR OpenBao¶

1. Navigate to: https://bao.k8s.ucar.edu

2. In the Authentication Method dropdown, select OIDC.

3. Log in using your UCAR CIT credentials (username/password).

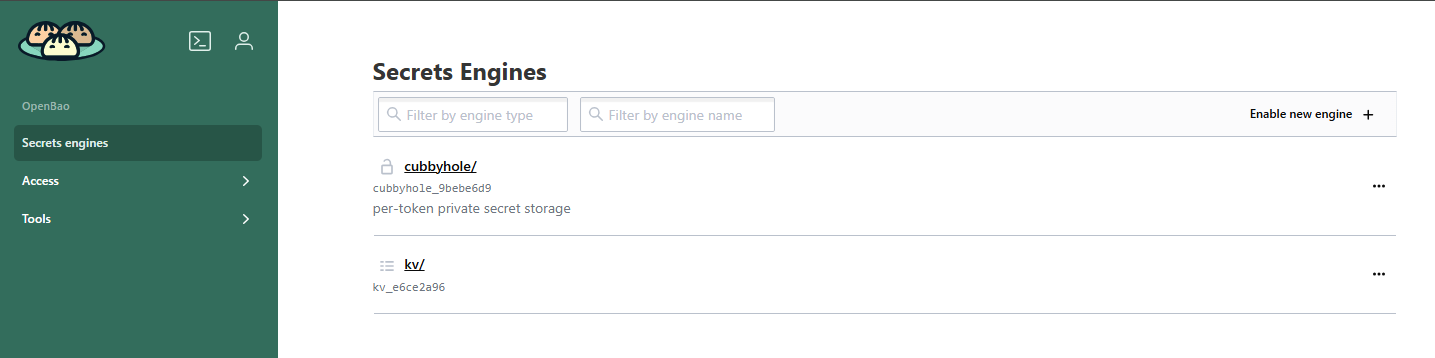

4. Once logged in, you'll be brought to a screen resembling the image below.

1. Select the kv (key/value) option.

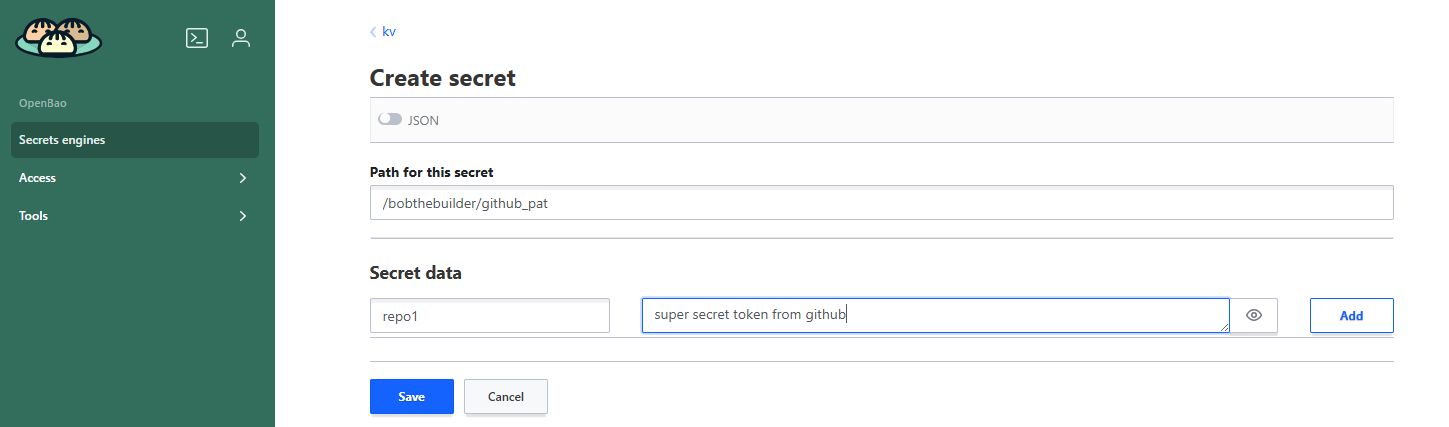

2. Click the Create Secret button in the upper right.

3. For the Path, enter: <your ucar email address>/<new secret>

4. Under that secret path, add key/value pairs:

5. Key: A short description (e.g., GITHUB_TOKEN)
6. Value: The actual secret

1. Click Save to store your secret securely.

Updating an Existing OpenBao Secret¶

It's good practice to rotate secrets regularly. To update an existing secret:

1. Log in to OpenBao using the same method as above.

2. Once in the kv section, enter your secret path in the "View Secret" field (e.g., your-email@ucar.edu/).

3. A list of your stored secrets will appear.

4. Select the desired secret to edit it.

5. Add or update any key/value pairs as needed.

6. Save your changes.

Shared Secrets¶

For secrets that need to be accessed by multiple team members or applications, CIRRUS supports shared secret paths. These are created and managed by the CIRRUS Admin team to ensure proper access control and security.

Requesting a Shared Secret Path¶

To request a new shared secret path:

1. Create a ticket with the CIRRUS Admin team including the following information:

   • Shared secret path name: A descriptive name for the secret path (e.g., team-alpha/database-credentials or project-weather/api-tokens)
   • Team member email addresses: List all UCAR email addresses that need access to this shared secret path
   • Purpose: Brief description of what the shared secret will be used for

2. Once the CIRRUS Admin team creates the shared secret path, authorized team members can add secrets to the shared path.

Adding Secrets to a Shared Path¶

After the shared secret path has been created:

1. Navigate to: https://bao.k8s.ucar.edu and log in using your UCAR CIT credentials

2. In the kv section, for the Path field, enter:

   <shared-secret-path-name>/<new-secret>


   For example: team-alpha/database-credentials/prod-db

3. Add your key/value pairs and save the secret

Using Secrets in CIRRUS Applications¶

In order to use secrets stored in OpenBao as environment variables within CIRRUS-hosted applications:

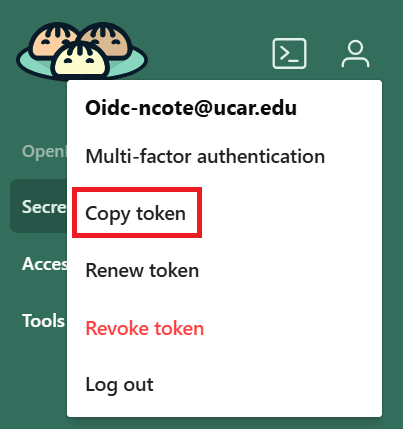

1. Copy your OpenBao token: Click the person icon in the upper left corner of the OpenBao interface and select "Copy token". Store this token in OpenBao under your personal path at your-email@ucar.edu/bao with the key "token" and your copied token as the value.



2. A SecretStore object must be created in Kubernetes by the CIRRUS Admin team. This defines how secrets are accessed.

3. Once the SecretStore exists, an ExternalSecret can be added to your Helm chart. This object maps a secret from OpenBao into a Kubernetes Secret.

4. The ExternalSecret can then be referenced inside your Kubernetes Deployment using valueFrom.

When submitting a request to host a new application (see adding applications), please include:

• The names of the secrets you want to use
• The path and properties from OpenBao

For updating an existing app with secrets, please create a ticket with the necessary details.

ExternalSecret Example¶

This example configures Kubernetes to retrieve a secret from OpenBao using the openbao-backend SecretStore in your app's namespace. It looks up the secret stored at ncote@ucar.edu/cirrus-secrets and retrieves the property my-secret-key. The result is injected into your container as an environment variable.

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
   name: myapp-esos
   namespace: {{ .Release.Namespace }}
spec:
   refreshInterval: 1h
   secretStoreRef:
       name: openbao-backend
       kind: SecretStore
   target:
       name: myapp-esos
   data:
       - secretKey: my-secret-value
         remoteRef:
           key: ncote@ucar.edu/cirrus-secrets
           property: my-secret-key

For an example Helm chart that uses ExternalSecrets, see external-secret-helm.
