Creating Containers¶

There are several ways to create a containerized version of an application. The Open Container Initiative (OCI) is a project that creates industry standards for container formats and runtimes. Some popular OCI compliant container engines are Docker, Podman, and Containerd to name a few.

In this guide, we'll focus on Docker - still the most widely used and beginner-friendly tool. The approach shown here applies equally well to any OCI-compliant engine, so what you learn will carry over.

Python Applications¶

Python applications are a great place to start when learning how to create a containerized version of the application. The main reason for this is because there is a base image built on top of Python readily available.

For most basic applications, you only need to:

• Add your code
• Define your dependencies (usually via requirements.txt), and
• Build the image

Hello World Python Flask Application¶

We'll use Flask, a lightweight Python web framework, to demonstrate a basic containerized web app. It's a very straightforward and simple way to create a web server and connect it to your python code. Let's take a look at the python code for a Hello World Flask web application:

app.py

# Import the flask python module
from flask import Flask

# Define the Flask constructor
app = Flask(__name__)

# The .route() function in flask is a decorator that tells the application what function to run when visiting certain URLs.
# This defines that when someone visits <URL>/ the hello_world application should run
@app.route('/')
def hello_world():
    return 'Hello World'

# Create the main driver function to run the app
if __name__ == '__main__':
    app.run(host="0.0.0.0")

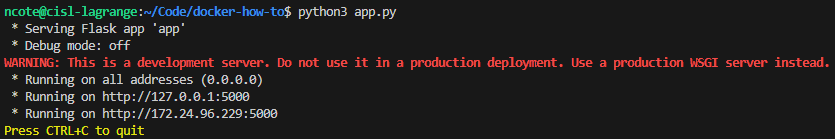

That's all that's required to spin up a web application to display "Hello World". This can be run locally with python3 app.py. The output after being launched should look like the following:

The webpage can now be accessed locally at localhost:5000 or 127.0.0.1:5000. In the last line of the python code the host is specified as 0.0.0.0 and the reason for this is to expose the application to all addresses. This is required for running on k8s or cloud platforms where the address that gets assigned is not known prior to deployment. As long as that all runs as expected and the Hello World page loads in the browser it's time to look at how to containerize the application.

Dockerfile: Containerizing the App¶

Now that we have a working Flask app, let's containerize it.

Create a file named Dockerfile (no extension). It contains step-by-step instructions to build the container image:

# Use an official Python runtime as a base image
FROM python:3.8-slim

# Copy all the files required in to the containers root directory
COPY . /

# Install the required python packages
RUN pip install --no-cache-dir -r requirements.txt

# Run the application
CMD ["python3", "app.py"]

This Dockerfile does the following:

1. Uses an official Python base image, which already includes Python and pip.
2. Copies all local files into the container.
3. Installs required dependencies listed in requirements.txt
4. Runs the application using the specified command.

Think of the Dockerfile as a scripted recipe to install and run your application in any environment. If you were setting this up manually, you'd do the same steps: install Python, copy your files, install dependencies, and run the app.

Build an Image¶

With a complete container assembly document, in this example a Dockerfile, it's time to actually build the image.

The command used for building a docker image is:

docker buildx build -t ncote/docker-how-to:v1 .

• docker buildx build triggers the image build.
• -t ncote/docker-how-to:v1 names and tags the image.
• ncote/ is the Docker Hub namespace (your username).
• docker-how-to is the image name.
• v1 is the version tag.
• . tells Docker to look for the Dockerfile in the current directory.

After running this command the output should end with a line that says Successfully built followed by Successfully tagged. As long as it finished building successfully it's time to move on and run the application locally to make sure it works as expected.

Run the Docker Image Locally¶

With a successfully built image it's time to run it and make sure it works with the following command:

docker run -p 5000:5000 ncote/docker-how-to:v1

• The docker application is called to run an image.
• -p 5000:5000 maps port 5000 on your host to port 5000 inside the container (the port Flask listens on).
• ncote/docker-how-to:v1 specifies the image to run.

You can now open http://localhost:5000 in your browser and see "Hello World" served from your containerized app. This is a very basic example to get started, but it puts in place a foundation to expand upon. There's numerous web frameworks and complex applications that can be built with container images harnessing the power of kubernetes.
